DC Solar® DynamIQ

Standard solar panels are heavy. Not in the least because of their thick glass plate on the front, clamped with the cells and backside in a massive, sturdy frame.

DC solar ® DynamIQ

When size and weight matters

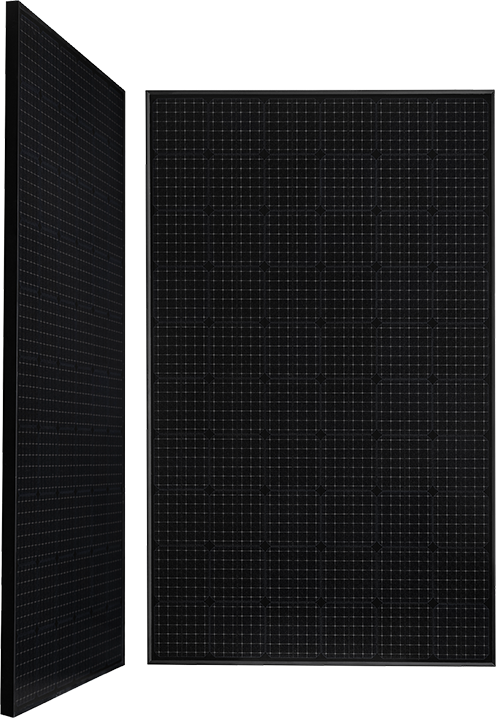

Modules

Standard solar panels are heavy. Not in the least because of their thick glass plate on the front, clamped with the cells and backside in a massive, sturdy frame. OK, let’s rethink that! DC Solar Systems DynamIQ is a unique, lightweight solar panel. The innovative structure meets a variety of demands. A challenge for our researchers turned into an opportunity for all constructions that in the past were not designed for PV implementation.

ALL BENEFITS

at a glance

BENEFITS

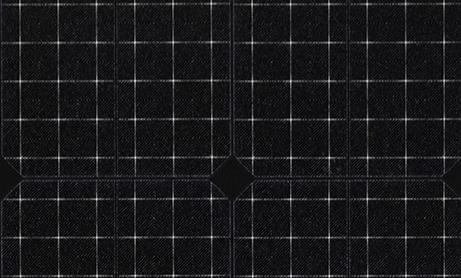

MWT - PERC Solarcells

More net surface to generate power
Each solar cell converts sunlight into electricity. PERC monocrystalline cells are known for their broader spectral response, allowing them to generate lots of power in the early morning and late afternoon light as well. Combined with MWT (Multi Wrap Through) technology, the cells have a larger working surface that is exposed to the sun than conventional cells. Busbars are unnecessary. Above all: busbar-shading is completely ruled out!

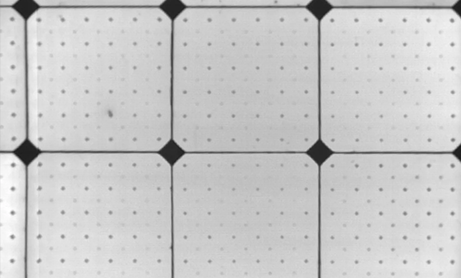

Minimized micro-crack risk

More robust than conventional modules
Small cracks in solar cells are impossible to see with the bare eye, but can really impact the performance of a PV system. Most solar cells are composed of very thin silicon wafers, usually around 0.15 – 0.20 mm thick. Pressure or stress can induce micro-cracks. Newbies in the solar industry often unknowingly create micro-cracks by throwing boxes of gear on top of stacked panels or even balancing panels on their heads as they walk towards a ladder. Standing or kneeling on panels during installation is also a contributor to micro-cracks.
DC Solar Systems bank contact modules are more robust than conventional modules because of the integrated Conductive Backsheet (CBS). This innovative copper design ensures optimal contact with an incredible number of contact points across the entire cell. It acts as an additional (metal) environmental barrier to protect the cells and keep them sturdily in place, and actually strengthens the contacting architecture. If a micro-crack should occur, the cell will still be in perfect contact with the copper that conducts the energy, effectively designing the negative effects of microcracks out of the module.
Quality cells combined with high-quality European solar glass and sturdy frames makes DC Solar Systems modules virtually immune to micro-cracks in real-life conditions.

Minimal 'Light Induced Degradation' (LID)

Significantly more yield over the entire lifespan
Due to technological advances in cell design and cell performance, LID impact on our DynamIQ modules is exceptionally low. So yield over the entire lifespan is significantly enhanced. LID is the effect that occurs as soon as the panel is connected, the cells have to ‘warm up’ in the broad daylight for a bit before reaching the optimum yield.

Lightweight + power harvest

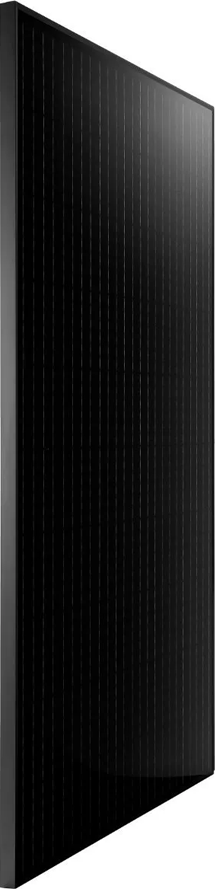

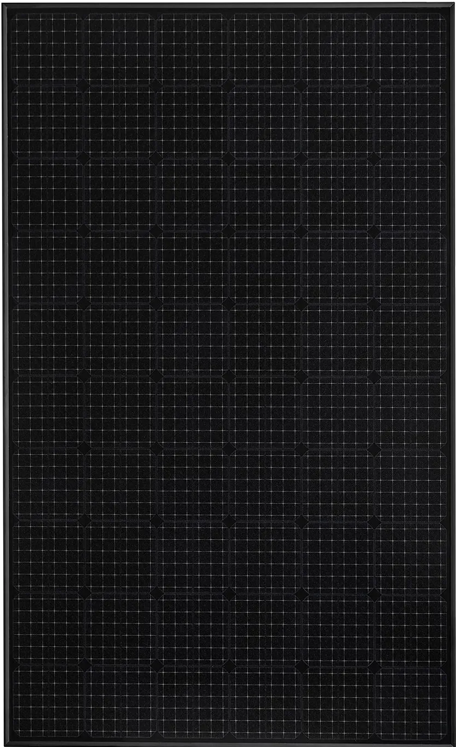

Silicon

Together with leading worldwide partners in the EU and North America our unique, innovative front substrate has been developed with durable and protective properties. Main focus: reduce weight without compromising our premium quality. Our technology turned out to be very beneficial for this. At the rear of the DynamIQ module we love our built-in, metallized environmental barrier. We additionally developed a unique backside carrier of hightech fibres and encapsulation material, into this unique PV specific laminate. The result is an ultra light panel. Yet with unrivaled sturdiness, and still fully recyclable. Just think about that! The MWT back contact design marginalizes the effect of microcracks and hotspots to an absolute minimum. In addition, the internal redundancy is optimally guaranteed with 61 active contacts per cell (3.660 at panel level). Especially when compared to the limited amount of busbars or wires on any traditional module. Due to its low weight, the panel is easy to handle and can be used in locations where standard systems are not suitable. We love opening these new horizons!

DynamIQ specifications

OTHER

FAMILY-MEMBERS

MODULES

DC Solar® DeflectIQ

NO GLARE NO FLARE

Non-reflective PV modules for delicate applications next to of highways, airports or vertical-urban. Pretty cool actually.

DC Solar® IconIQ

IBC MONO FULL BLACK

An enormous performance, based on the ‘ZEBRA’ IBC (Interdigitated Back Contact) technology by ISC Konstanz. “Europäische Spitzentechnologie” available this year.

AVAILABILITY OF

DynamIQ
